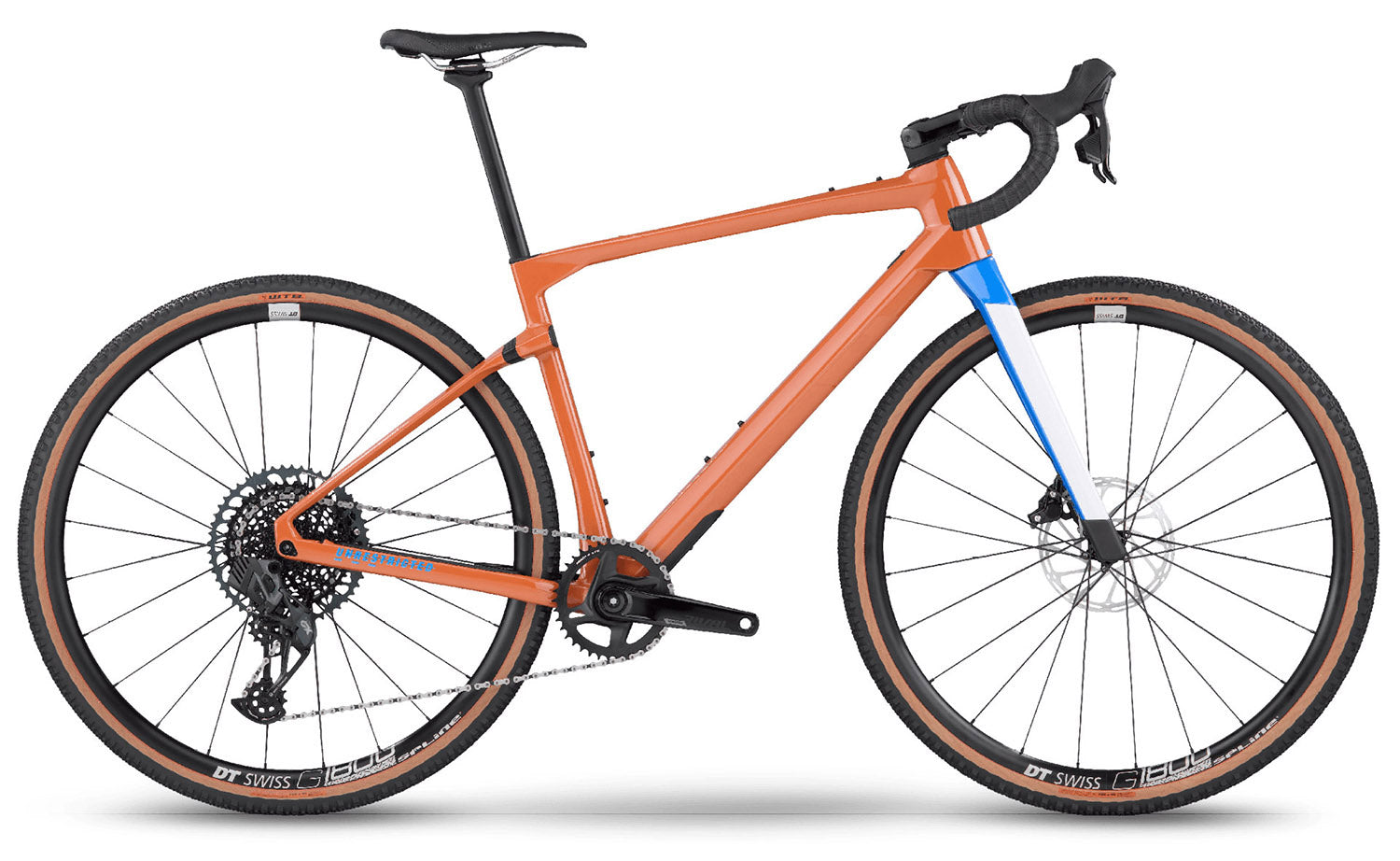

URS 01 THREE

BLUE
Prodotto dell’archivio BMC

URS 01 THREE

Parti e accessori

Panoramica tecnica

Telaio

Telaio:
URS 01 Premium Carbon with Micro Travel Technology | Tuned Compliance Concept Gravel | Gravel+ Geometry | ICS Technology | Stalth Cable Routing | Fender and Rack Mounts | Flat Mount Disc | 12 x 142mm Thru-Axle

Forcella:
URS 01 Premium Carbon with Tuned Compliance Concept Gravel | ICS Technology Integrated BRake & Hub Dynamo Routing | Fender Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle

Sospensioni

Sospensione Anteriore:

Sospensione Posteriore:

Lockoout in remoto:

Cockpit

Attacco Manubrio:
BMC ICS 01 Zero Degrees | Integrated Cockpit System Technology

Piega:
Easton EA70 AX

Nastro:

Seat

Reggisella:
URS 01 Premium Carbon D-Shaped Seatpost | 0mm Offset

Sella:
WTB SL8 Cromoly | Medium

Gruppo

Guarnitura:
SRAM Rival 1 AXS

Corona:
38T

Potenziometro:

Pacco pignoni:
SRAM XG-1275 Eagle

Ingranaggi:
10-52T

Catena:
SRAM GX Eagle

Deragliatore:

Cambio:
SRAM GX Eagle AXS

Comandi:
SRAM Rival eTap AXS HRD

Rapporti:
1 x 12

Movimento centrale:
PF86 Bottom Bracket

Freni

Leve Freno / Pinze:
SRAM Rival eTap AXS HRD

Dischi freno:
SRAM Centerline

Diametro dischi:
180 / 160mm

Ruote

Cerchi:
DT Swiss G1800 SPLINE | 25mm

Mozzi:
DT Swiss 370 Spline Disc

Pneumatici:
WTB Raddler | 44mm

Informazioni Tubeless:

Informazioni aggiuntive

Sezione max coperture:
42mm

Classificazione ASTM:
Level 2

Limite di peso massimale :
120kg

Size S M L XL
Rider Height <170 172-180 178-188 186-196
Reach 403 415 419 429
Stack 538 569 603 641
Bar Drop 120 120 120 120
Bar Reach 80 80 80 80
Bar Width 420 420 440 440
BB Drop 69 69 69 69
Crank Length 170 172.5 172.5 175
Fork Length 407 407 407 407
Fork Rake 45 45 45 45
Front Center 625 648 665 700
Head Tube 113 146 172 207
Head Tube Angle 70 70 70 70
Rear Center 425 425 425 425
Seat Angle 74 74 74 74
Seat Tube 431 459 492 527
Seatpost Length 330 380 430 430
Standover Height 748 778 810 846
Stem Length 70 70 80 90
Top Tube 557 578 591 612
Trail 77 77 77 77
Wheelbase 1041 1064 1081 1105
