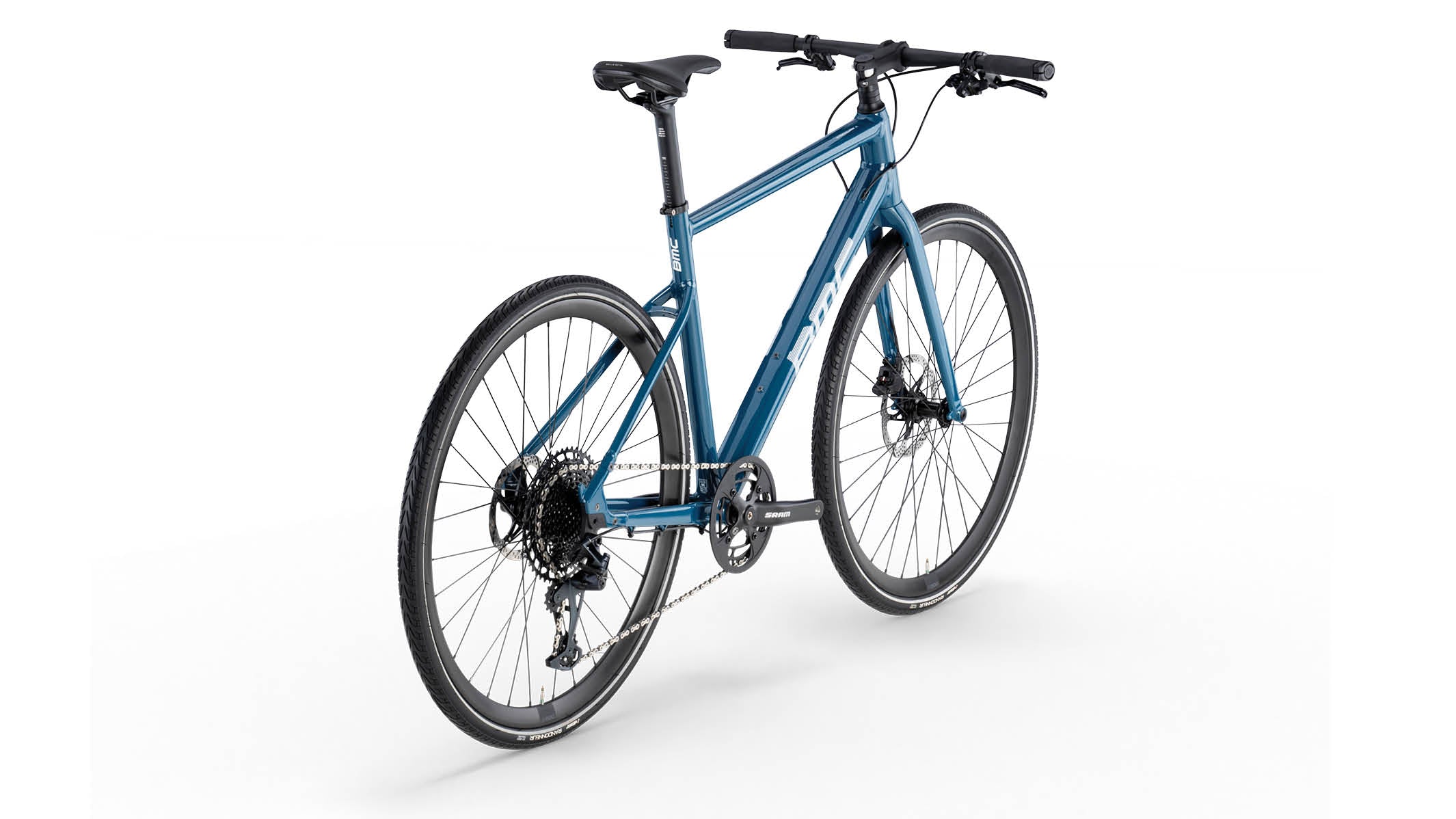

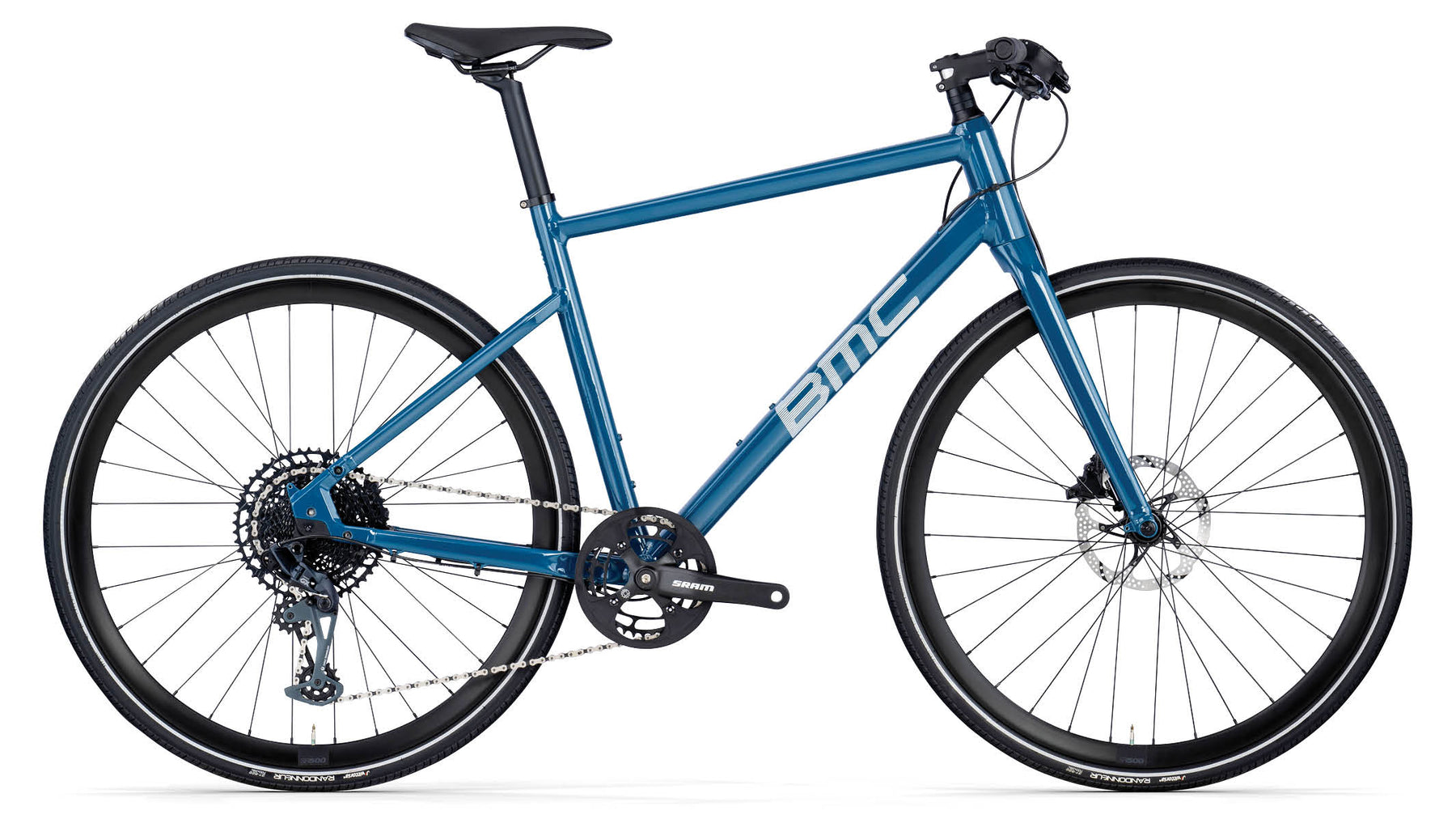

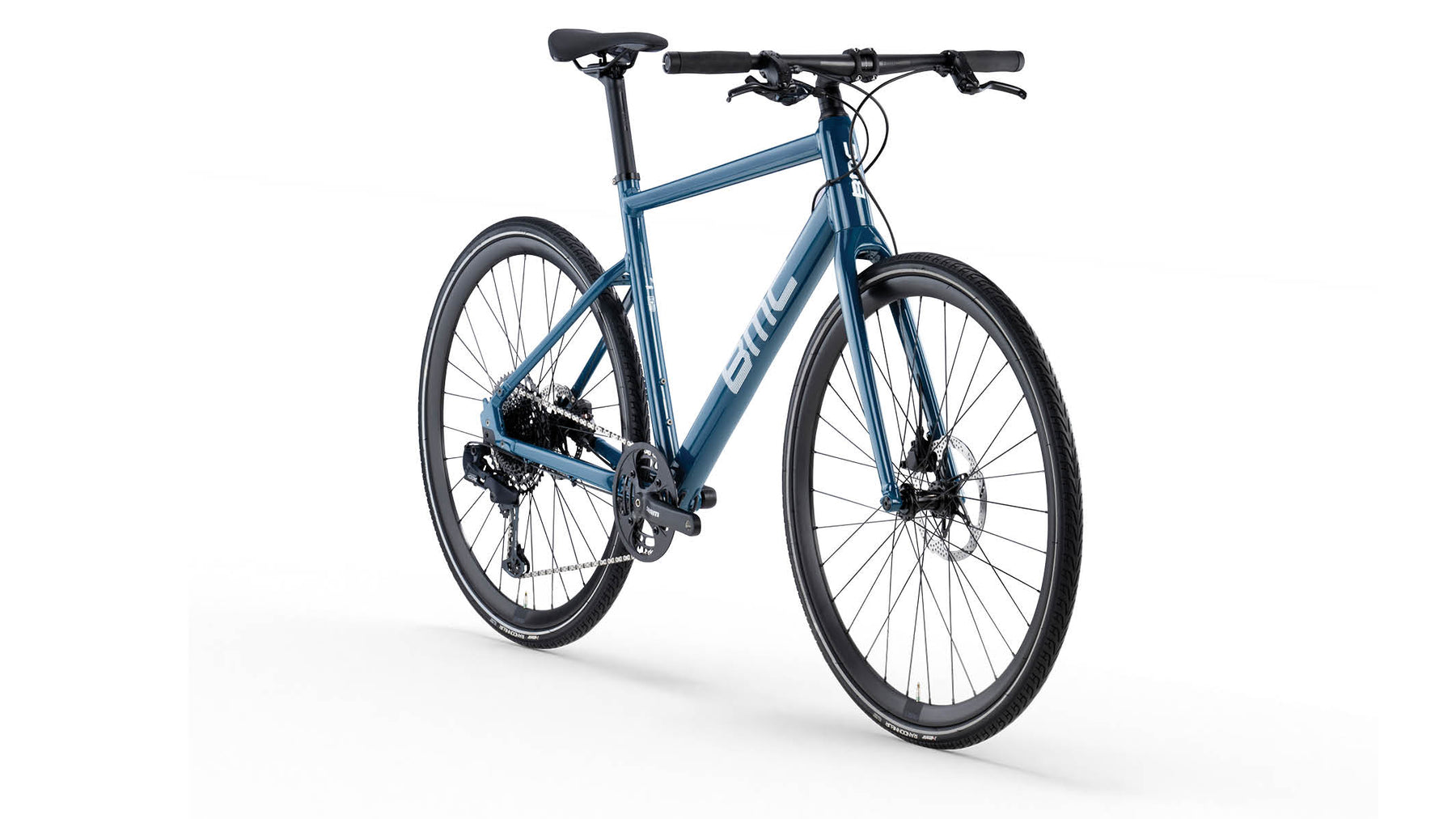

With its classy looks, exacting attention to detail and practical integration, the Alpenchallenge AL could only be a BMC hybrid bike. Its sporty, endurance-inspired, smooth welded, Premium Aluminium frame and fork have fender mounts, and the internally cabled frame is powder coated for durability. Its mechanical 12-speed SRAM Eagle drivetrain is geared to take you everywhere, TEKTRO HD-EU818 disc brakes moderate your speed, and it rolls on an SR500 wheelset with 37mm Vittoria Randonneur tires.
Technical Overview
Frameset
Frame:
Alpenchallenge Premium Aluminium | Smoothwelded | Powder Coat Finish | Internal Cable Routing | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Alpenchallenge Premium Aluminium | Fender Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle
Cockpit
Stem:
BMC RSM 01
Handlebar:
BMC LSB 03
Seat
Seatpost:
BMC LSP 02
Saddle:
Selle Royal Vivo
Drivetrain
Crankset:
SRAM S650 Eagle
Chainrings:
38T
Cassette:
SRAM NX PG-1230 Eagle
Cassette Size:
11-50T
Chain:
SRAM GX Eagle
Rear Derailleur:
SRAM GX Eagle
Shifters:
SRAM GX Eagle
Gears:
1 x 12
Bottom Bracket:
BSA Threaded Bottom Bracket
Brakes
Brake Levers / Calipers:
TEKTRO HD-EU818
Rotors:
TEKTRO TR180-35 / TR180-35
Rotor Size (F/R):
180 / 180mm
Wheels
Rims:
SR500
Hubs (F/R):
CL-712 | RXC-142S
Tires:
Vittoria Randonneur | 37mm
Tubeless Information:
Non-Tubeless Rims | Non-Tubeless Clincher Tire
Additional Information
Tire Clearance:
42mm
ASTM Classification:
Level 2
System Weight Limit:
120kg
