Technology
Technical Overview
Frameset
Frame:
Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Teammachine R 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Cockpit
Handlebar:
ICS Carbon Aero | One-Piece Full Carbon Cockpit | 135mm drop, 77mm reach, 12.5° flare
Seat

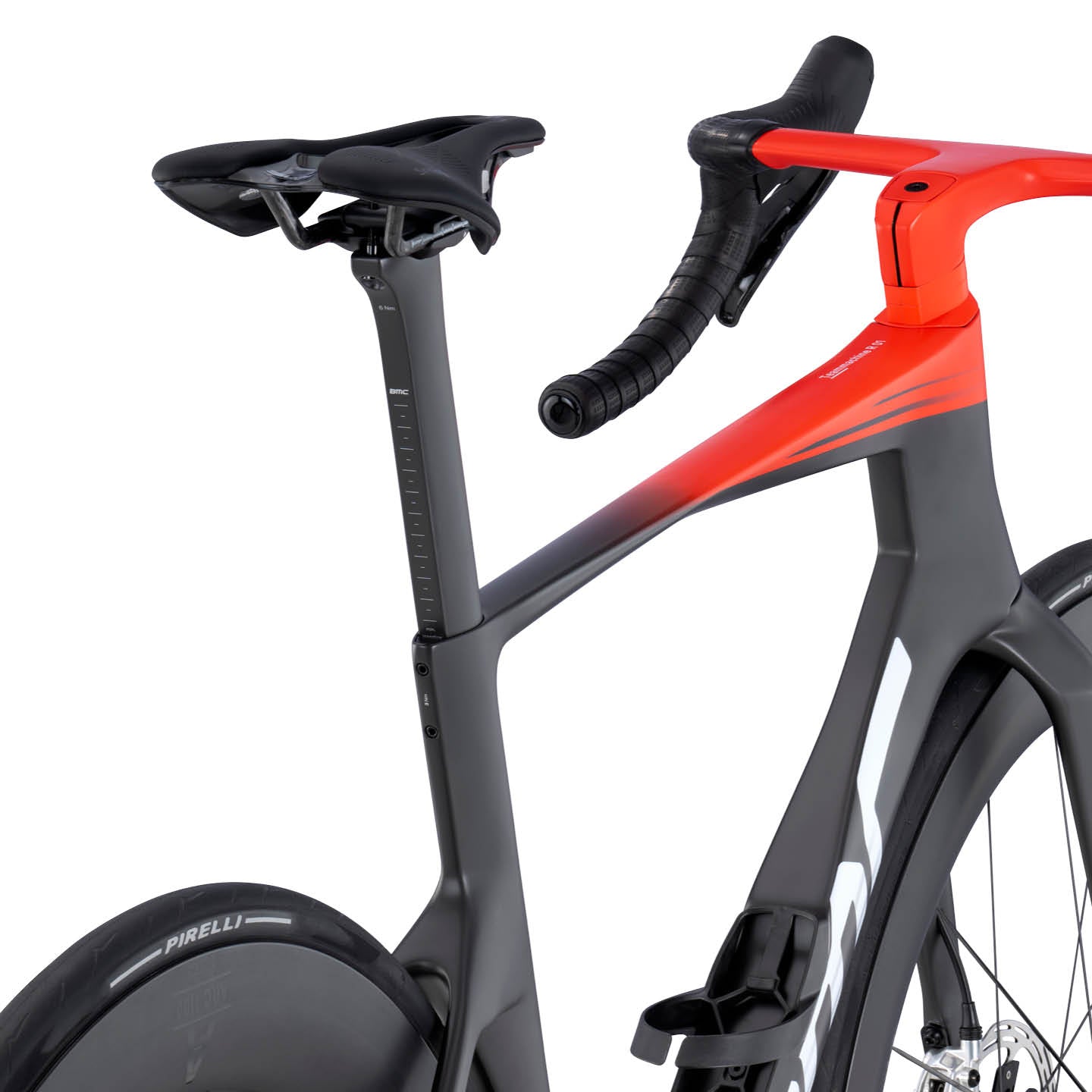

Seatpost:
Teammachine R 01 Premium Carbon Seatpost | 10mm Offset
Saddle:
Selle Italia SLR Boost Superflow | CarboKeramic Rail | 145mm
Drivetrain

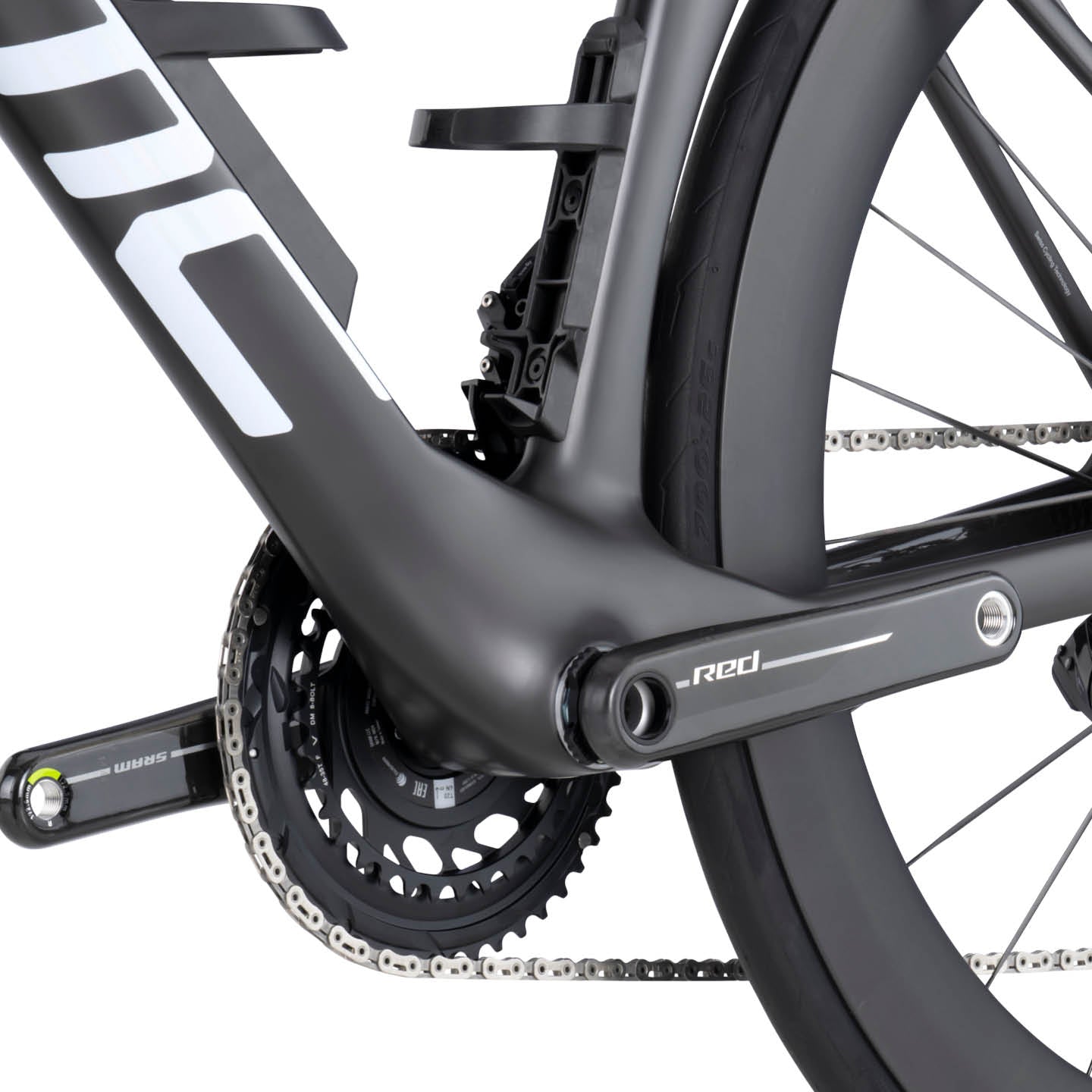

Crankset:
SRAM RED AXS (FC-RED-P-E1)
Chainrings:
48-35T
Power Meter:
SRAM Red AXS Power Meter (FC-RED-P-E1)
Cassette:
SRAM RED (CS-XG-1290-E1)
Cassette Size:
10-33T
Chain:
SRAM RED (CN-RED-E1)
Front Derailleur:
SRAM RED AXS (FD-RED-E-E1)
Rear Derailleur:
SRAM RED AXS (RD-RED-E-E1)
Shifters:
SRAM RED AXS (ED-RED-E1)
Gears:
2 x 12
Bottom Bracket:
SRAM Press Fit DUB
Brakes
Brake Levers / Calipers:
SRAM RED AXS (ED-RED-E1)
Rotors:
SRAM Paceline X | Centerlock
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
DT Swiss ARC 1100 DICUT | 65mm
Hubs (F/R):
DT Swiss 180 DICUT | Ratchet EXP 36
Tires:
Pirelli P Zero Race TLR RS | Tubeless | 26mm
Tubeless Information:
Tubeless Rim | Tubeless Tires
Accessories
In the Box:
Aerocore Bottle Cages | Computer mount for Garmin and Wahoo
Additional Information
Tire Clearance:
30mm
ASTM Classification:
Level 1
System Weight Limit:
110kg
