Teammachine SLR 01 FOUR

TURQUOISE / BLACK

SHIMANO Ultegra Di2 Drivetrain with Powermeter
CRD-351 SL Wheelset
ICS2 Integrated Cockpit Design and Premium Carbon D-Shape Seatpost

Regular priceEUR 8.499,00
EUR /
Tax included.

SKU: 30005732
Size

Teammachine SLR 01 FOUR

Parts & Accessories

  • Shipped to your local bike shop

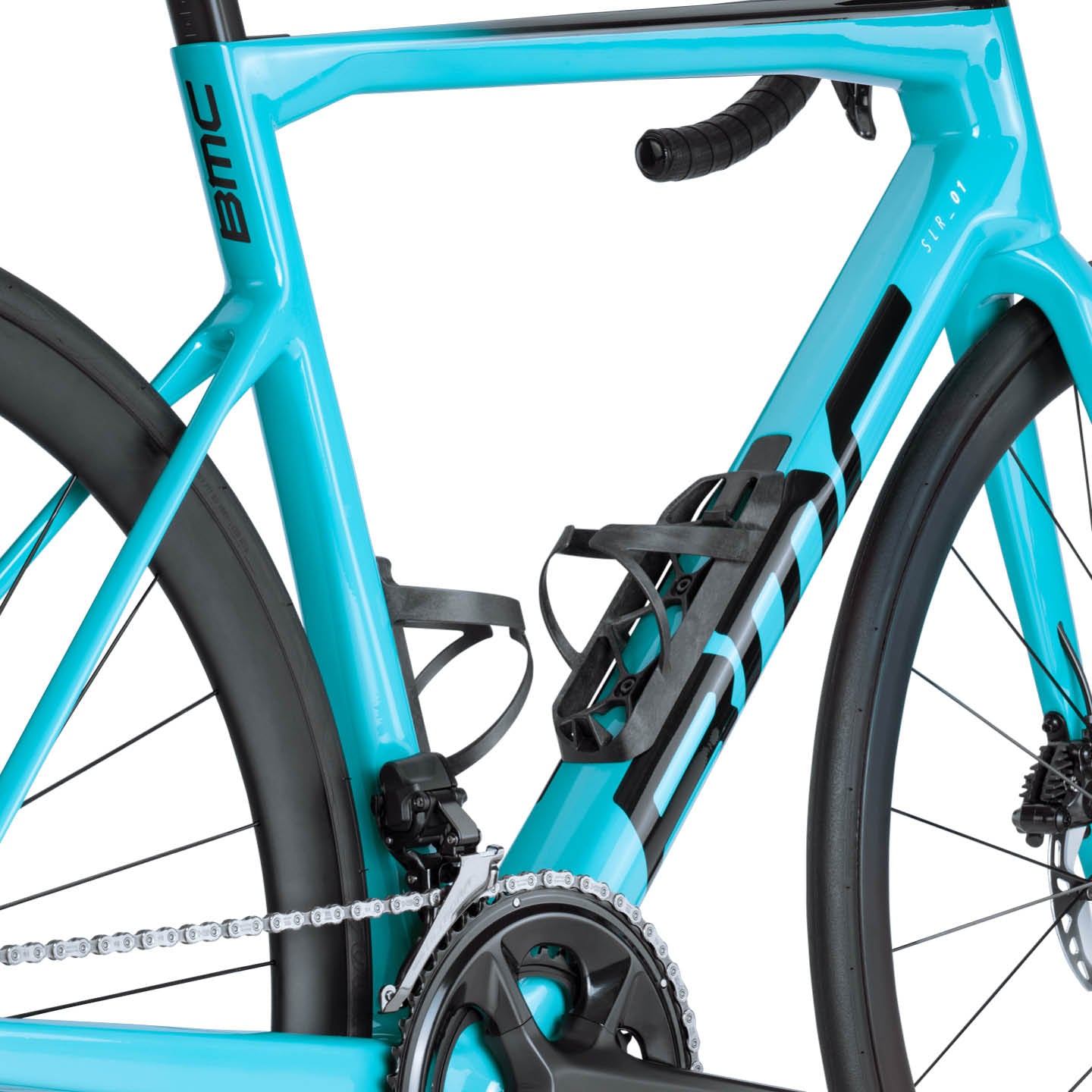

The original Teammachine SLR 01 created the blueprint for the modern road bike. After more than a decade of obsessive innovation and development, today’s world-beating Teammachine SLR 01 still leads where others follow. Its TCC Race-engineered Premium Carbon frame includes the Aerocore Design system, ICS technology and Stealth Cable Routing. The Shimano Ultegra Di2 groupset teams with the CRD-351 SL wheelset, ICS2 Integrated Cockpit Design and 4iii Power Meter to create one stunning ride.

Technology

Technical Overview

Frameset

Frame:
Teammachine SLR 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
Teammachine SLR 01 Premium Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle

Cockpit

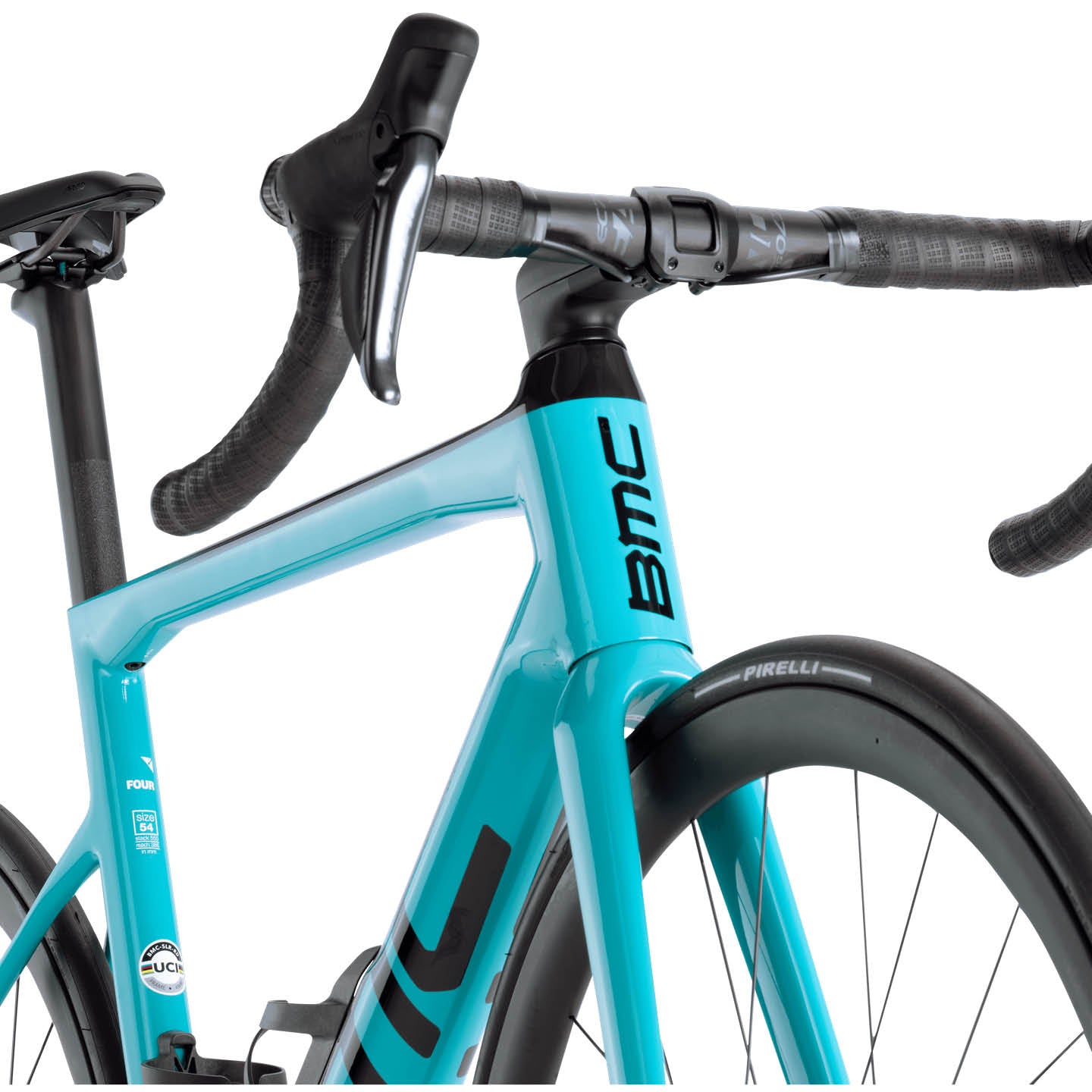

Stem:
BMC ICS2 | Integrated Cockpit System Technology

Handlebar:
Easton EC70 SL Carbon

Seat

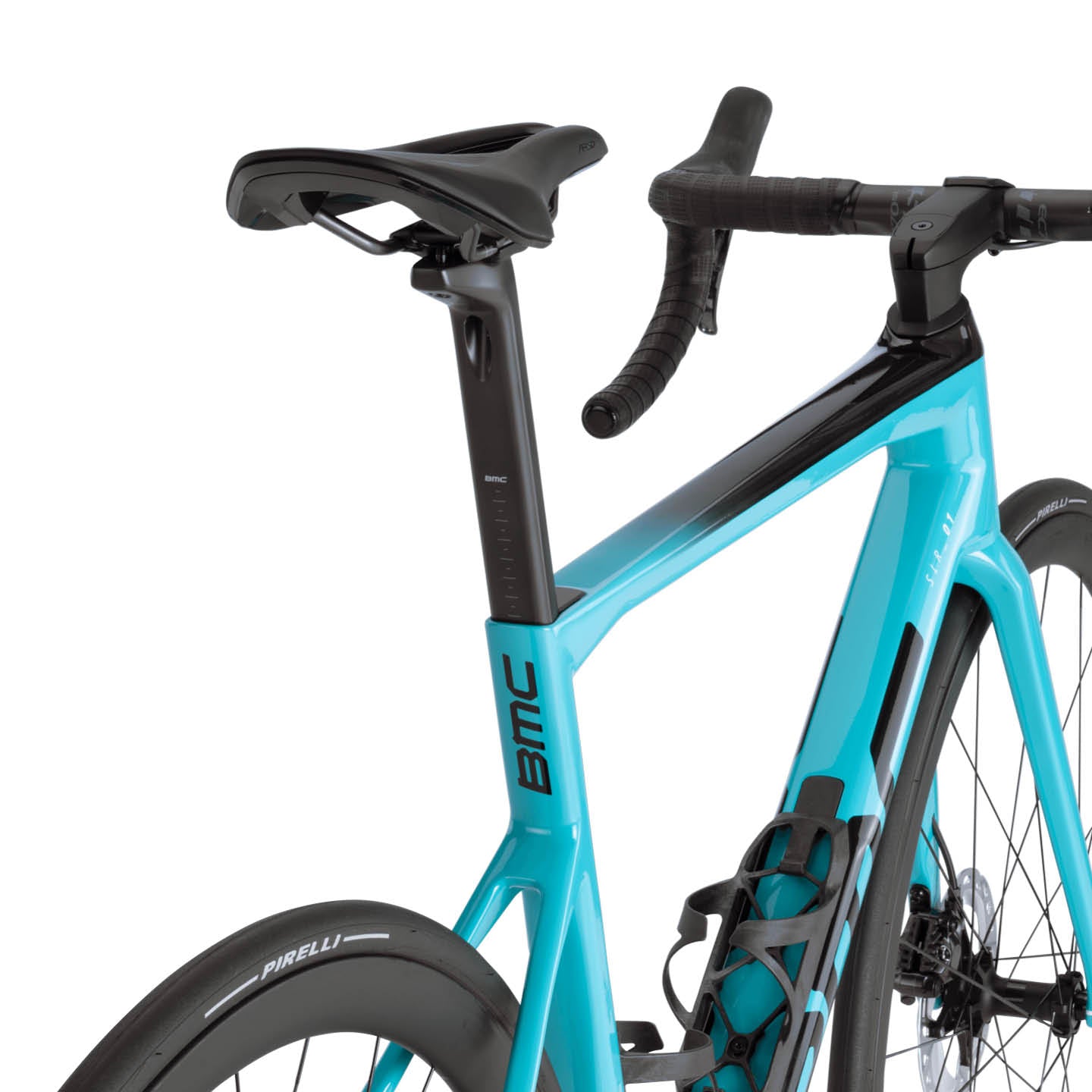

Seatpost:
Teammachine SLR 01 Premium Carbon D-Shaped Seatpost | 15mm Offset

Saddle:
Fizik Vento Argo R3 | 140mm

Drivetrain

Crankset:
SHIMANO Ultegra (FC-R8100)

Chainrings:
52-36T

Power Meter:
4iiii Precision Gen3+ Power Meter (Non-Drive Side)

Cassette:
SHIMANO Ultegra (CS-R8100)

Cassette Size:
11-30T

Chain:
SHIMANO CN-M8100

Front Derailleur:
SHIMANO Ultegra Di2 (FD-R8150)

Rear Derailleur:
SHIMANO Ultegra Di2 (RD-R8150)

Shifters:
SHIMANO Ultegra Di2 (ST-R8170)

Gears:
2 x 12

Bottom Bracket:
PF86 Bottom Bracket

Brakes

Brake Levers / Calipers:
SHIMANO Ultegra (BR-R8170)

Rotors:
SHIMANO RT-MT800 | Centerlock

Rotor Size (F/R):
160 / 140mm

Wheels

Rims:
CRD-351 SL Carbon | Tubeless Ready | 35mm

Hubs (F/R):
CRD-351 SL

Tires:
Pirelli P-Zero Race SL TLR | 26mm

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Accessories

Aerocore Bottle Cages

Additional Information

Tire Clearance:
30mm

Weight without Pedals:
7.2 Kg

ASTM Classification:
Level 1

System Weight Limit:
110kg

Size 47 51 54 56 58 61
Rider Height <166 166-174 172-180 178-186 184-192 >190
Reach 367 377 386 392 401 409
Stack 506 530 550 565 584 608
Bar Drop 117 117 127 127 127 127
Bar Reach 76.9 67 67 67 67 67
Bar Width 400 420 420 420 420 420
BB Drop 69 69 69 69 69 69
Crank Length 170 170 172.5 172.5 175 175
Fork Length 368 368 368 368 368 368
Fork Rake 48 48 43 43 43 43
Front Center 568 586 589 599 614 630
Head Tube 110 130 145 165 184 210
Head Tube Angle 71.5 71.5 72.3 72.3 72.3 72.3
Rear Center 410 410 410 410 410 410
Seat Angle 73.5 73.5 73.5 73.5 73.5 73.5
Seat Tube 423 468 504 524 545 574
Seatpost Length 330 380 380 380 380 380
Seatpost Offset 15 15 15 15 15 15
Standover Height 717 752 779 797 817 843
Stem Angle -12.5 -12.5 -12.5 -12.5 -12.5 -12.5
Stem Length 90 100 100 110 110 120
Top Tube 517 534 549 559 574 589
Trail 63 63 63 63 63 63
Wheelbase 968 986 989 1000 1015 1030
